Design and Safety

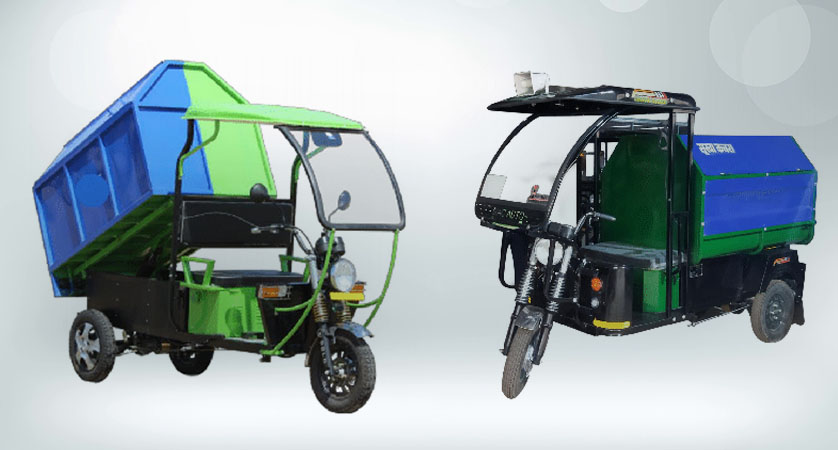

LYRE BIRD Junk is meticulously designed E-Garbage Loader. It comes with a separate compartment for segregation of dry and wet waste. It is also equipped with an automatic hydraulic mechanism which is conveniently placed on drivers handle for ease of operation and enables lifting of cart.

Engineering

The E-Garbage Loader is easy to operate with an automatic hydraulic mechanism, and it is low on maintenance and high on efficiency

Better Payload Capacity

If the looks impress you, try and see its performance, with a high loading capacity and low maintenance, it has the potential of serving many tasks.

Cost Ef fective

Renowned for its efficiency in low running cost and low maintenance cost, the LYRE BIRD Garbage Loader is a non-compromising solution to collect waste.

Waste Segregation Facility

A unique solution to segregate waste with two compartments for wet and dry waste collection

TECHNICAL SPECIFICATION FOR GARBAGE COLLECTION

Model	Lyrebird Garbage Loader
Model Vareint	Base
Body Type	For Door To Door Collection
Colour Option	White , Sky Blue, Green
Make	Lyrebird Automobiles
Warranty	6 Months
Front Type	Windshield
POWERTRAIN
Motor	48v 1000 W
Controller	48 Volts 60 Amps
SUSPENSION
Front Suspenion	Telescopic Hydrualic Shocker Leaf Spring With Hydrualic
Rear Suspension	Shockers
BREAKING SYSTEM
Front Breaking System	Drum Type
Rear Breaking Syste	Drum Type

TECHNICAL SPECIFICATION FOR GARBAGE COLLECTION

Drivetrain Gear Type	Automatic/Manaul
Tyre Size	3.75*12
Body Type Fuel Type And Options
Fuel Type	Electric
Battery Options	Lead Acid 12vx4 Nos 130 Ah Lithium 48v 100 Ah
VEHICLE PERFORMANCE
Empty Vehicle	340 Kg
Load Capacity	718 Kg
Mileage
A.With Lead Acid 130 Ampere	110 Kms
B. With Lithium Ion 100 Ampere	100 Kms
Speed	25 Kms
Vehicle Dimension	In Mm
Length	2720
Widht	990
Height	1760
DIVISION OF THAT WEIGHT
Front Wheel	163 K.G
Rear Wheel	533 K.G
LOAD BODY MAKE & DIMENSION
Body Material	Mild Steel In Mm
Length	1414
Widht	1010
Height	880
